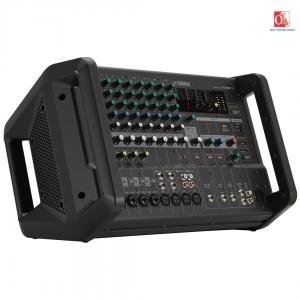

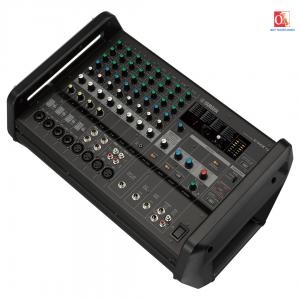

Mixer Analog kèm công suất Yamaha EMX5

Powerful & High Efficiency Class-D Amplifier

The EMX7 and EMX5 models feature a built-in high-efficiency power amplifier of 2 x 710W, 2 x 630W of output power respectively. Despite their low power consumption, these amps are capable of very high volume output, yet still manage to remain surprisingly lightweight. Both models also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

Robust But Extremely Portable Design

The EMX7 and EMX5 benefit from a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and road usage. Large handles on the front and back of the enclosure make it extremely portable, and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport.

Easy Setup, Easy Operation

With their intuitive, user-friendly architecture, the EMX7 and EMX5 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. Their versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. From a tabletop, floor, or installation environment no matter used on a tabletop or from a seated position with the mixer placed on the floor.

Complete Range of Input & Output Channels

Both the EMX7 and EMX5 are equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones, and line-level devices such as keyboards and portable playback device to be connected to each channel. In addition, channel 4 can be used with Hi-Z inputs to connect instruments such as guitars or basses directly. Each model is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.

Speaker Processor and Preset (EMX7 only)

The speaker processor function allows you to select an appropriate setting to match the particular speakers you’re using. It features presets specifically tuned for each model in Yamaha’s extensive lineup of passive speakers, including CBR, Club, A and R series. This allows users to optimize speaker performance and save even more time during system setup. It also includes a bass boost function that can be enabled to significantly bring out the lower frequencies.

Bộ triệt dội âm tích hợp

Vài điều có thể làm hư một buổi biểu diễn hoặc phát biểu như những tiếng hú khó đột ngột và khó chịu . May mắn là EMX2 được trang bị tính năng Feedback Suppressor tận dụng công nghệ kỹ thuật số độc đáo của Yamaha để ngay lập tức loại bỏ thông tin phản hồi khó chịu với việc chuyển đổi duy nhất một nút.

3-band Equalizer Control

With individual knobs you can adjust the [HIGH], [MID], and [LOW] audio frequencies. You can operate instantly turning the control to amplify (boost) and attenuate (cut) the corresponding frequency band.

Flex 9 Graphic Equalizer (EMX7 only)

EMX7 is equipped with Flex-type graphic equalizer (Flex9GEQ) that allows you to select up to nine bands out of a total of 31 for fine tuning ±15 dB.

1-Knob Master EQ™ (EMX5 only)

Để có thể giúp ích cho việc tùy chỉnh âm thanh của ban, EMX2 1-knb Master touch cho phép bạn ứng dụng chế độ EQ chỉ với 1 nút vặn đơn giản. Chế độ SPEECH được sử dụng dành cho cách buổi meeting, hội thảo hoặc hội nghị bằng cách giảm bớt dải tần thấp giúp tiếng nói rõ ràng hơn. Chế độ MUSIC cung cấp một chế độ âm thanh cân bằng về âm học và biểu diễn ban nhạc; BASS BOOST thì lý tưởng cho những buổi biểu diễn DJ hoặc playback nhạc thiên về việc nhấn mạnh những âm thanh trầm.

1-knob COMP

EMX7/5 is equipped with the popular 1-knob COMP function used in MGP and MG series models. By simply operating a single control, it is possible to get optimal compression for vocals and instruments. As the [COMP] control is turned to the right, the threshold, ratio, and output gain are adjusted simultaneously.

Rack-Mounting

EMX7/5 can be mounted onto a 19-inch rack by using the RK-EMX7 (rack-mount kit) sold separately.

Comprehensive, Professional Effects and Signal Processing

EMX7/5 are equipped with a powerful, comprehensive DSP section that provides a total of 24 different effects that are in the same league as our famed SPX effect processor series used by professionals. It is possible to add reverb and delay effects that simulate the sound of different performance environments, such as concert halls and small clubs.

Flexible Speaker Connectivity

EMX7/5 are equipped with speaker jacks which can be used with both TS phone and speakON plugs.

Bộ nguồn đa năng thông dụng

EMX7/5 have a highly-efficient internal universal power supply, then offer worry-free operation in any region around the globe - even in environments prone to potentially damaging power fluctuations. An internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for a bulky adapter or additional connections.

• (0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)

Input Characteristics

(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND

Output Characteristics

(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND

Speaker Output Characteristics

(0 dBu = 0.775 Vrms)
*1 1+ = Positive, 1- = Negative
*2 Tip = Positive, Sleeve = Negative
